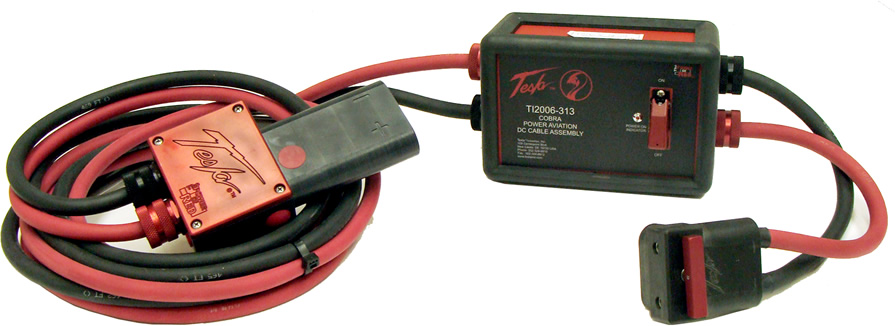

TI2006-313 Cobra™ Power Aviation DC Cable Assembly

The Tesla™ Cobra Power Aviation DC Cable Assembly is equipped with a high current switchable control. A hermetically sealed toggle switch, along with a protective switch guard, allows the safe transfer of up to 3000 peak amps — no more arcing or fusing. When active, a status LED illuminates to let the user know power is present.

Incorporating state-of-the-art electronic control and monitoring circuitry, the Cobra™ Power Aviation DC Cable can provide safe and efficient power transfer of up to 3000 peak amps — no more damage or injury to equipment, plugs and personnel.

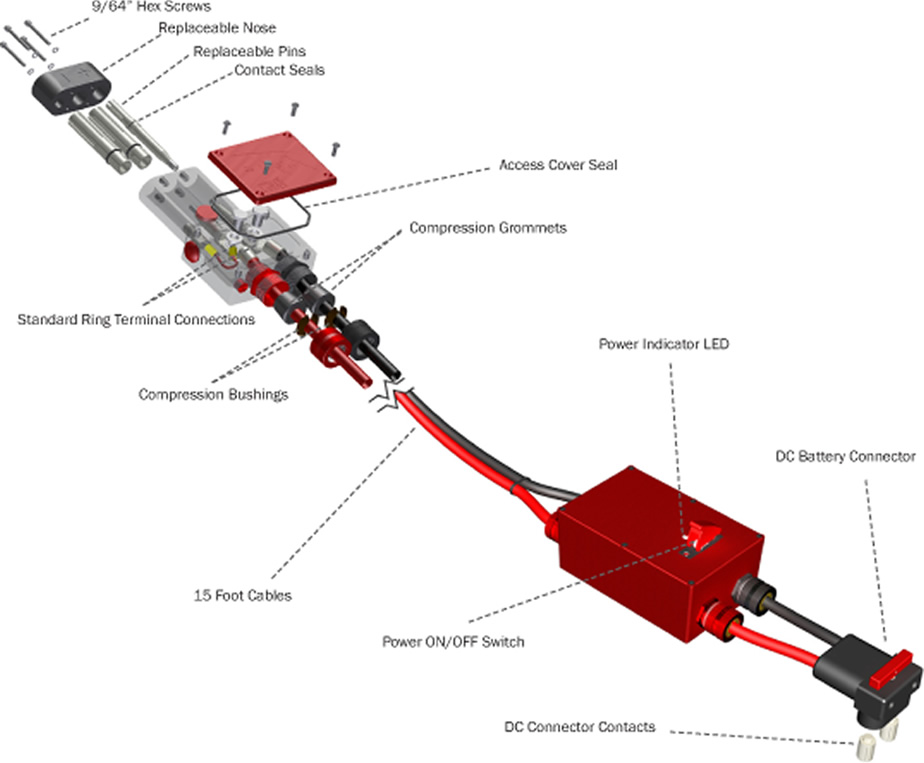

Internal Cable Connections

Unlike slave cables, that are molded directly into the plug housing, easily accessible lugs allow for direct termination inside of the plug. Additionally, compression grommets and bushings provide strain relief. This unique combination of protection eliminates potential shocks from exposed wiring due to cable stretching and splicing.

• Maintenance-free design
• State-of-the-art electronic control
• Reliable switching up to 3000 peak amps
• 500 Amps continuous
• 15 ft. 1Ø cable assembly
• Clamped cable connections
• UV, fuel, fungus, and oil resistant
• Easy component replacement
• Manufactured by Tesla™
• Exceeds MIL-STD-810
• Tested to withstand 50 G of force
• 2 Year Warranty

Connector Parts & Tools

TI2005-488
DC Battery Connector
Insertion ⁄ Extraction Tool TI2005-490
DC Battery Connector
Replacement Contacts TI2005-199
Cable Crimp Bullets

TI2005-251
DC Aviation Plug
Neg. & Pos. Contact TI2005-250
3-Slotted
Connector TI2005-239
DC Aviation
Insertion ⁄ Extraction Tool TI2004-341
Replacement Nose
Requires 9/64" Allen Wrench

Ring Terminals


TI2005-072
Negative Cord Grip


TI2005-073
Positive Cord Grip
NSN: 5340015244530

TI2005-074
Negative Cap
NSN: 5999015238390

TI2005-075
Positive Cap
NSN: 5999015245077
