Tesla™
Power Anytime, Anywhere

DC Battery Connectors

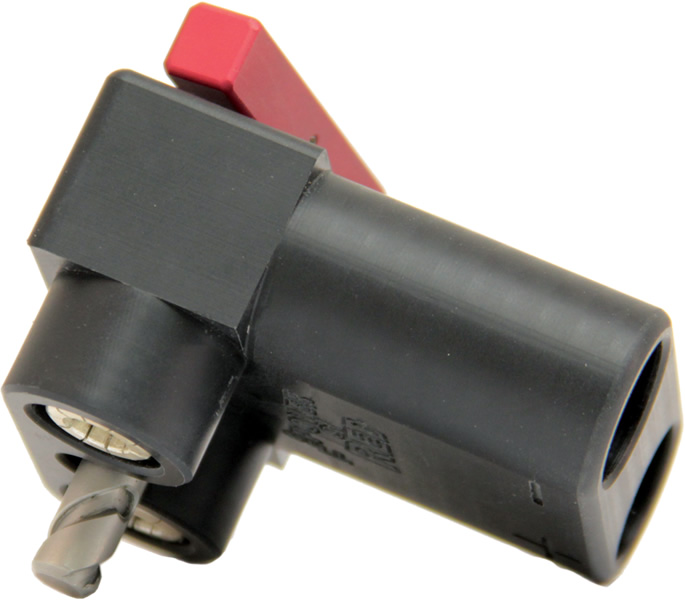

TI2005-410

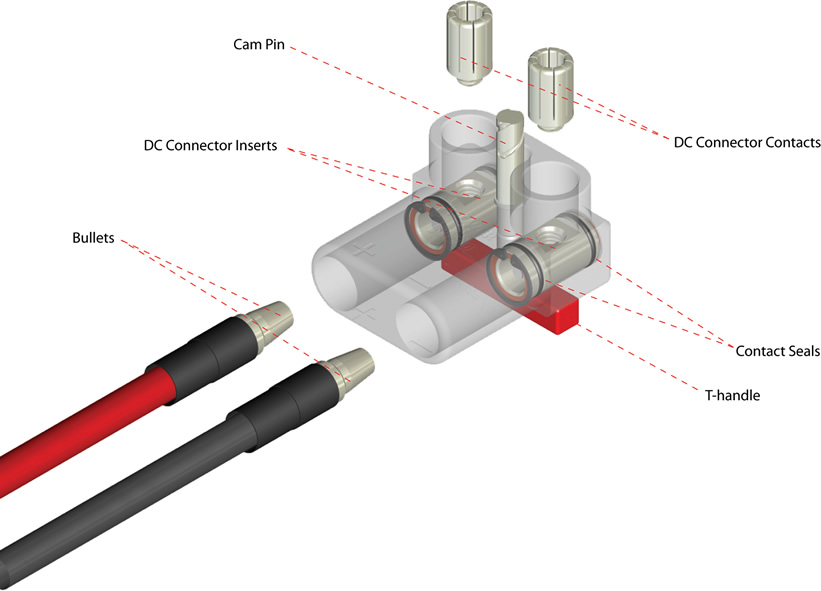

The Tesla™ DC Battery Connector’s internal cables are connected by crimpable bullets allowing for direct termination inside of the connector. The connector contacts are easily replaceable "in the field". The T-Handle makes for easy and quick connections to the receptacle. Three Connector/Receptacle combinations are available assuring the right cables are used for the receptacles or the cable won’t fit.

  • Rated to 3000 peak amps
  • Clamped cable connections
  • UV, fuel, fungus, water, and oil resistant
  • Easy component replacement
  • Manufactured by Tesla™
  • Exceeds MIL-STD-810
  • Tested to withstand 50 G of force
  • 2 Year Warrranty

DC Battery Connector Ordering Options

Key A TI2005-410

Key A is compatible with Miilitary Standard MS3509 and Tesla TI2005-379 DC Battery Receptacle. Key A comes standard with all Tesla™ Cable Assemblies
Key A
Key B TI2004-021

Only compatible with the TI2004-020 DC Battery Connector. Key B is the standard for all Tesla 12 Vdc on Ground Power Units.
Key B
Key C TI2004-108

Only compatible with the TI2004-109 DC Battery Connector.
Key C
