Tesla™
Power Anytime, Anywhere

TI500 GPU-24

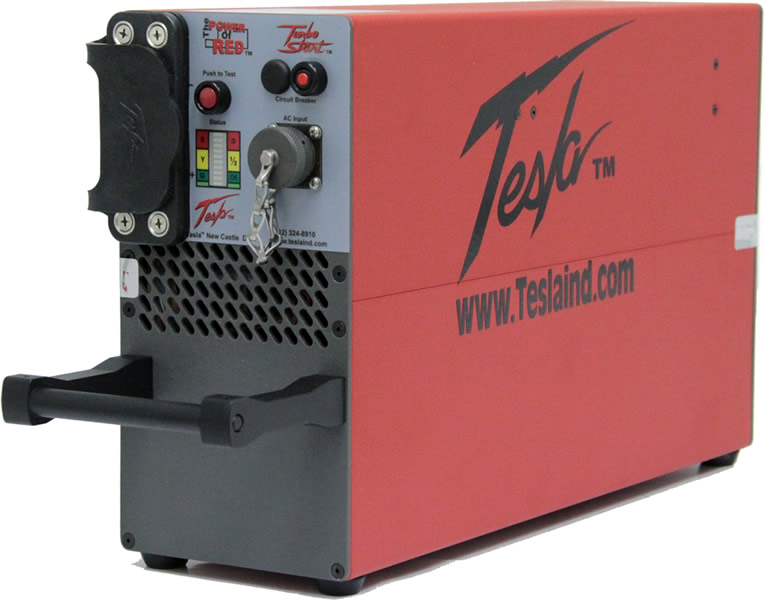

TI500 Ground Power Unit

The TI500 GPU-24 offers tremendous flexibility, as it will connect to an aircraft’s 400Hz ac system. At just 36 lbs., the TI500 can be transported easily.

  • 50/60 Hz Vac or 400 Hz Vac aircraft power (with correct line cord).
  • Ideal for hangars, FOBs, motor pools, and deployments.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI500 GPU-24 Specifications

DC Output: 750 peak starting amps
25 amps continuous @ 28.5 Vdc (when plugged into ac power)
36.5 amp hours (968 watt hours) with ac power
11.5 amp hours (256 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from Single Phase 100-260 Vac, 50/60/400 Hz
10 amps @ 120 Vac
5 amps @ 240 Vac
Recharging Rate: 33 minutes (from full discharge) @ 25°C
Dimensions: 20.61" L x 5.2" W x 10.56" H
523.49 mm x 132.08 mm x 268.25 mm
Weight: 36 lbs (16.4 kg)
Warranty: 2 Years (3 Year Optional)
