TI5200 GPU-24

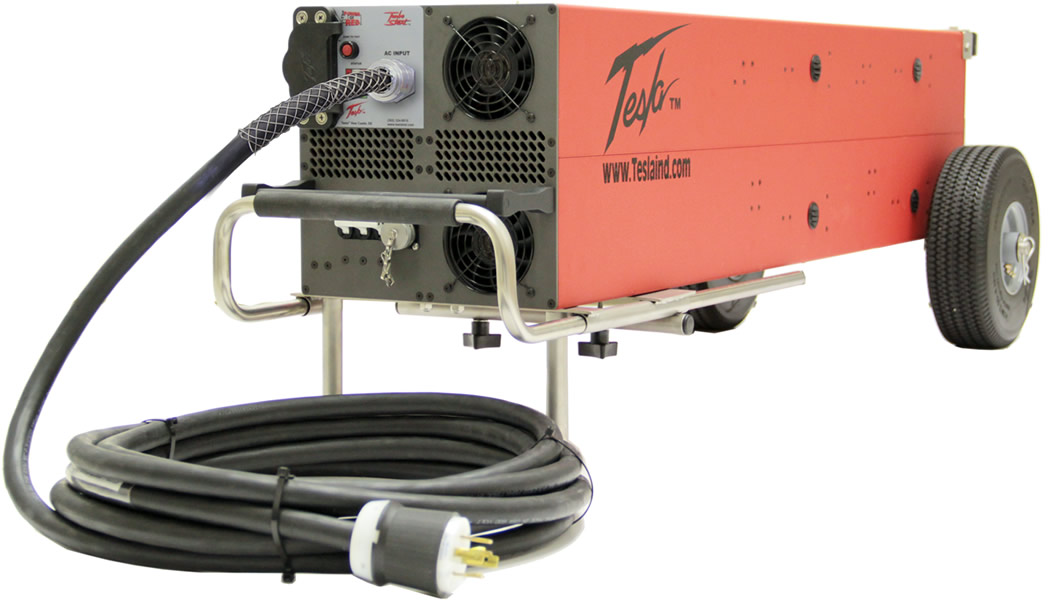

TI5200 Ground Power Unit

The TI5200 provides 200 amps continuous along with 3000 peak starting amps. With 46 amps of rechargeable power available, this system will take care of your power requirements in a hangar or maintenance facility as well as in the field.

  • Designed for small to medium size, fixed wing aircraft.
  • Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
  • One person can easily maneuver and operate the unit.
  • Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
  • GPU will back-charge off a vehicle charging system (no ac required).

TI5200 GPU-24 Specifications

DC Output: 3000 peak starting amps
200 amps continuous @ 28.5 Vdc (when plugged into ac power)
246 amp hours (6724 watt hours) with ac power
46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input: Operates and charges from three phase 200-260 Vac 50/60 Hz
20 amps @ 208 Vac
Requires 30 amp service (contact Tesla™ Industries for receptacle information)
Recharging Rate: 19 minutes (from full discharge) @ 25°C
Dimensions: 49.0" L x 19.25" W x 16" H
1244.6 mm x 488.95 mm x 406.4 mm
Weight: 186 lbs (84.37 kg)
Warranty: 2 Years (3 Year Optional)

Alternate NSN Codes:
TI5200 GPU-24 / NSN: 6130-01-475-5312
TIMV5200 GPU-24 / NSN: 6130-01-475-5348
